BLIND THREADED RIVET
HIGH STRENGTH

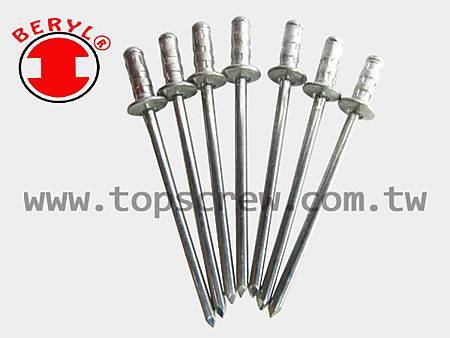

MULTIGRIP BLIND RIVET
TM SERIES
MATERIAL AVAILABLE FOR MULTI-GROP BLIND RIVETS:
RIVET BODY MATERIAL : ALUMINUM 5052.
MANDREL MATERIAL : STEEL / ZINC PLATED.
SUITABLE APPLICATION:
- AUTOMOBILES, MOTORCYCLES, ELECTRICAL APPLIANCES, LIGHTING FIXTURES, ETC.
- MAKES THE GAP OF JOINING OBJECTS EXPAND FIRST THEN RIVETS THEM CLOSELY.
- IT WILL NOT BE LOOSENED BY SHANK.
- THE INNER AND OUTER JOINS ARE GOOD LOOKING.
- HELPS REDUCE STOCK RANGE.
- PARTICULAR DOME HEADS ACCEPTABLE.

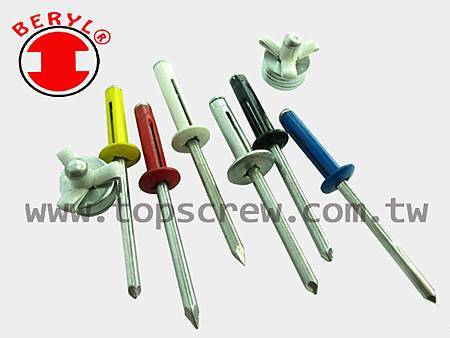

- FINISH AVAILABLE IN A MULTIPLE OF COLORS.
-OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST
topscrew1975 發表在 痞客邦 留言(0) 人氣()
STRETCH FOLDING BLIND RIVET
TS SERIES
MATERIAL AVAILABLE FOR STRETCH FOLDING BLIND RIVETS:
RIVET BODY MATERIAL : ALUMINUM 5052.
MANDREL MATERIAL : ALUMINUM 5056.
POSITIVE MANDREL RETENTION :
RATTLE FREE FASTENER
CORROSION RESISTANT:
ALL ALUMINUM CONSTRUCTION
MULTI GRIP:
- ADJUSTS TO A WIDE VARIATION OF SUBJECT'S THICKNESS.
- FINISH AVAILABLE IN A MULTIPLE OF COLOR.
SUITABLE APPLICATIONS:
- SUPPORTS BRITTLE, THIN SOFT OR DUCTILE MATERIALS AND FUNCTIONS WHEN USED WITH OVERSIZED, MISALIGNED OR IRREGULARLY SHAPED HOLES.
- THE STRETCH FOLDING BLIND RIVET FORMS THREE LARGE FOLDING LEGS THAT CREATE EXCELLENT CLAMPING-UP AND A LARGE BLIND SIDE BEARING SURFACE.
topscrew1975 發表在 痞客邦 留言(0) 人氣()
BLIND THREADED RIVET

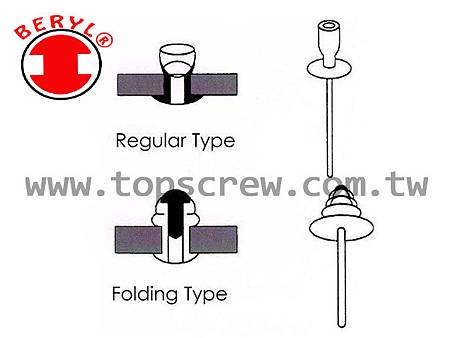

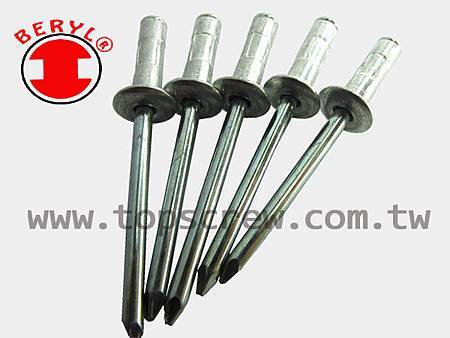

FOLDING BLIND RIVET
DOME HEAD / CSK HEAD
TF SERIES
MATERIAL AVAILABLE FOR FOLDING BLIND RIVETS:
RIVET BODY MATERIAL : ALUMINUM 5052.
MANDREL MATERIAL : STEEL / ZINC PLATED.
SUITABLE APPLICATION:
- AUTOMOBILES, MOTORCYCLES, ELECTRICAL APPLIANCES, LIGHTING FIXTURES, ETC.
- MAKES THE GAP OF JOINING OBJECTS EXPAND FIRST THEN RIVETS THEM CLOSELY.
- IT WILL NOT BE LOOSENED BY SHANK.
- THE INNER AND OUTER JOINS ARE GOOD LOOKING.
- FINISH AVAILABLE IN A MULTIPLE OF COLORS.
-OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST
topscrew1975 發表在 痞客邦 留言(0) 人氣()

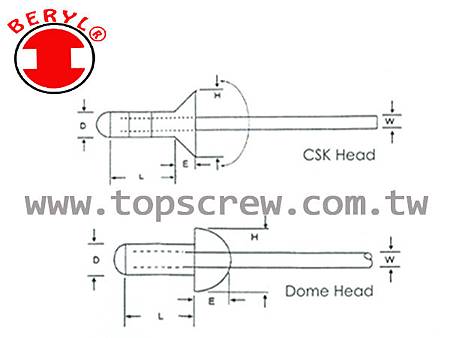

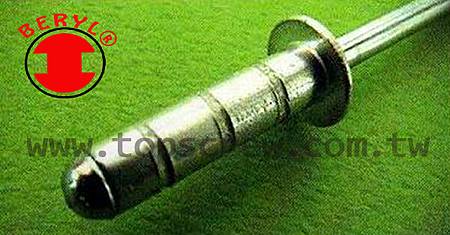

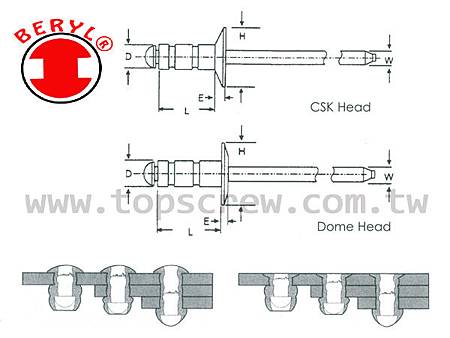

MULTI-GRIP BLIND RIVET
|
|
D
|
HOLE SIZE
|
L
|
W
|
H
|
E
|
GRIP RANGE
|
STRENGTH
(KG-F)
|
|
|
DOME
|
CSK
|
|
P/N
|
RIVET DIA.
|
DRILLING DIA.
|
LENGTH
|
MANDREL DIA.
|
FLANGE DIA.
|
FLANGE THICKNESS
|
TENSILE
|
SHEAR
|
|
TM408
|
3.2(1/8")
|
3.4
|
8.0
|
1.9
|
6.4
|
1.0
|
0.8-4.7
|
110
|
90
|
|
TM412
|
12.5
|
4.0-8.5
|
|
TM510
|
4.0(5/32")
|
4.2
|
10.8
|
2.3
|
8.0
|
1.3
|
1.5-6.3
|
160
|
150
|
|
TM513
|
13.5
|
4.0-9.5
|
|
TM610
|
4.8(3/16")
|
5.0
|
10.5
|
2.8
|
9.6
|
1.5
|
1.3
|
1.6-6.4
|
270
|
190
|
|
TM615
|
15.9
|
4.8-11.2
|
★CLICK ME TO SEE HOW TO INSTALL THE MULTI-GRIP BLIND RIVET
MATERIAL AVAILABLE FOR MULTI-GROP BLIND RIVETS:
ALUMINUM 5052/ MANDREL MATERIAL: STEEL/ ZINC PLATED
SUITABLE APPLICATION:
- AUTOMOBILES, MOTORCYCLES, ELECTRICAL APPLIANCES, LIGHTING FIXTURES, ETC.
- MAKES THE GAP OF JOINING OBJECTS EXPAND FIRST THEN RIVETS THEM CLOSELY.
- IT WILL NOT BE LOOSENED BY SHANK.
- THE INNER AND OUTER JOINS ARE GOOD LOOKING.
- HELPS REDUCE STOCK RANGE.
- PARTICULAR DOME HEADS ACCEPTABLE.
- FINISH AVAILABLE IN A MULTIPLE OF COLORS.
★OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST
topscrew1975 發表在 痞客邦 留言(0) 人氣()
SPECIAL BLIND RIVET SERIES－STRETCH FOLDING BLIND RIVET
★CLICK ME TO SEE HOW TO INSTALL THE STRETCH FOLDING BLIND RIVET
MATERIAL AVAILABLE FOR STRETCH FOLDING BLIND RIVETS:
ALUMINUM 5052/ MANDREL MATERIAL: ALUMINUM 5056 (ALL MEASUREMENT ARE IN mm)
POSITIVE:
RATTLE FREE FASTENER
CORROSION RESISTANT:
ALL ALUMINUM CONSTRUCTION
MULTIGRIP:
1. ADJUSTS TO A WDE VARIATION OF SUBJECT'S THICKNESS.
2. FINISH AVAILABLE IN A MULTIPLE COLOR.
SUITABLE APPLICATIONS:
1. SUPPORTS BRTTLE THIN SOFT OR DUCTILE MATERIALS & FUNCTIONS WHEN USED WITH OVERSIZED, ISALIGNED OR IRREGULARLY SHAPED HOLES.
2. THE STRETCH FOLDING BLIND RIVET FORMS THREE LARGE FOLDING LEGS THAT CREATE EXCELLENT CLAMPOING-UP & A LARGE BLIND SIDE BEARING SURFACE.
★OTHER SIZE, MATERIAL ARE AVAILABLE UPON REQUEST
topscrew1975 發表在 痞客邦 留言(0) 人氣()
